Breadth First Search pattern

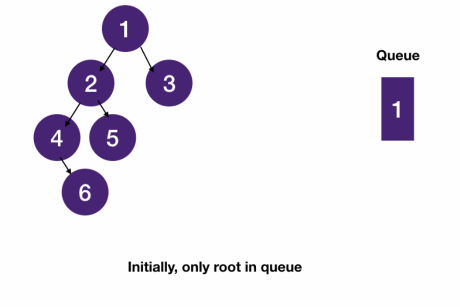

• breath first search visits all nodes in a level before starting to visit the next level
• While DFS uses recursion/stack to keep track of progress,
  • BFS uses a queue (First In First Out).
    • When we dequeue a node, we enqueue its children.

DFS vs BFS

DFS is better at	BFS is better for
narrow but deep trees	shallow but wide trees
finding nodes far away from the root	finding nodes close/closest to the root

Template

• We can implement BFS using a queue.
  • Important things to remember:
    • We need at least one element to kick start the process
    • Right after we dequeue an element, we'd want to enqueue its children if there is any

class Node {
  constructor(value) {
    this.value = value;
    this.children = [];
  }

  addChildren(node) {
    this.children.push(node);
  }
}

function bfsByQueue(root, target) {
  if (!root) return null;
  const queue = [root];
  while (queue.length > 0) {
    const node = queue.shift();
    for (const child of node.children) {
      if (child.value === target) return child;
      queue.push(child);
    }
  }
  return null;
}

const one = new Node(1);
const two = new Node(2);
const three = new Node(3);
const four = new Node(4);
const five = new Node(5);
const six = new Node(6);

one.addChildren(two);
one.addChildren(six);

two.addChildren(three);
two.addChildren(five);

three.addChildren(four);

console.log(bfsByQueue(one, 2));
