Graph pattern

Fundamentals

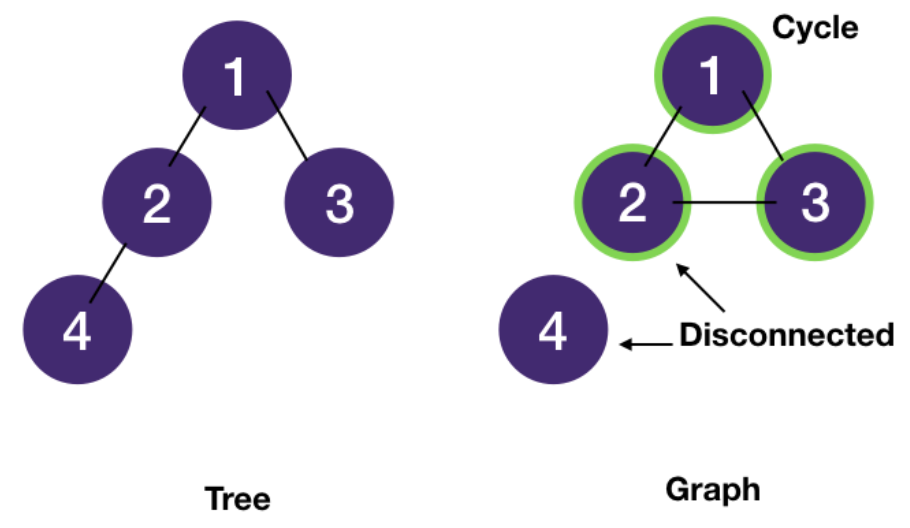

Tree with 0+ cycle

• A tree is a special graph - a connected acyclic (cycle-less) graph.
• A graph may contain cycle(s) and nodes could be disconnected.
• A tree also contains n nodes and n - 1 edges in addition to being acyclic and there exists only 1 path between 2 nodes in a tree.

Graph Terminologies

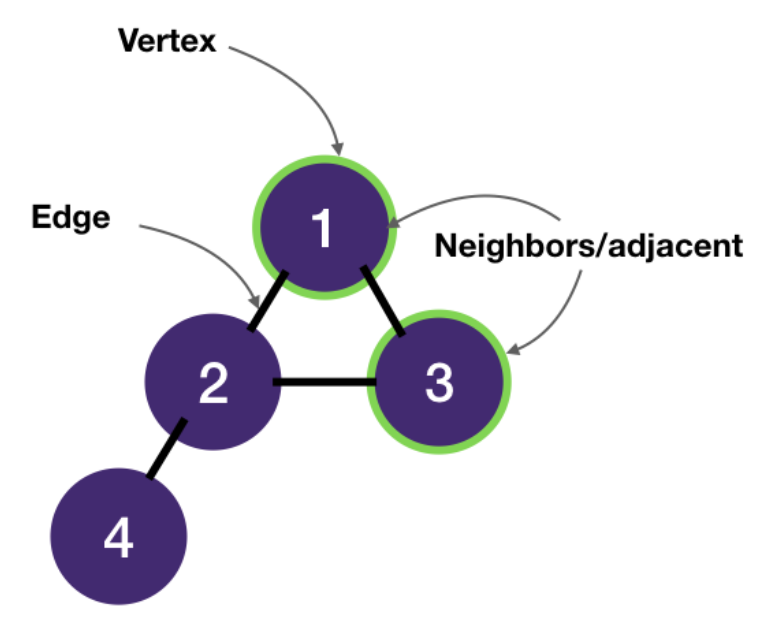

• A graph consists of vertices ("nodes" in trees) and edges.
• Vertices are connected by edges.
• Two vertices connected by an edge are called neighbors and are adjacent ("children" in trees).

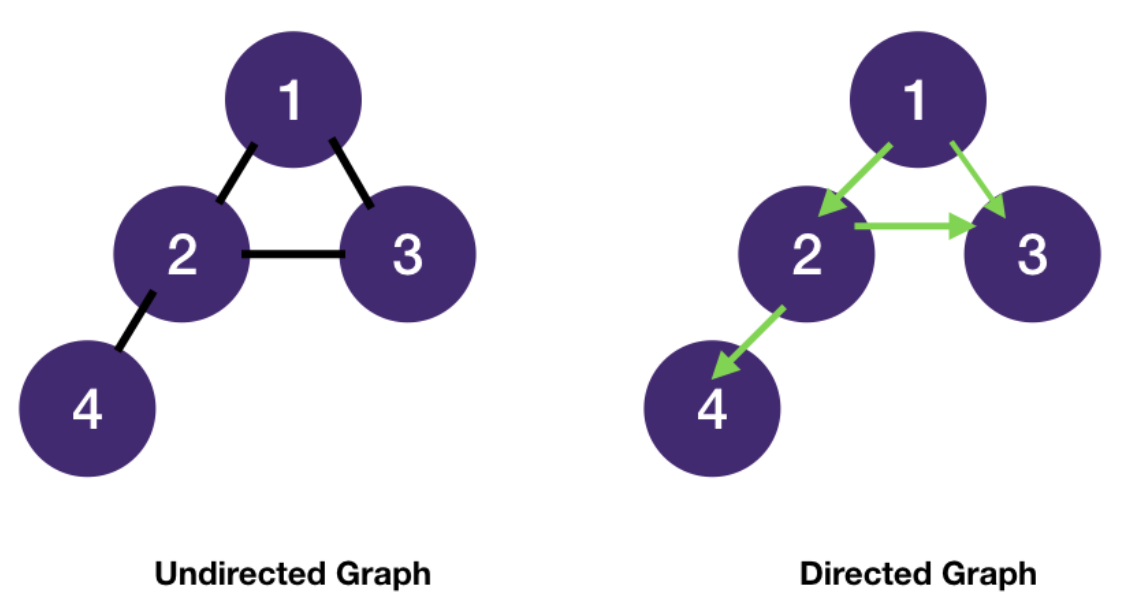

• Edges can be undirected or directed. For most interview problems we are dealing with undirected graphs.
• A tree is also an undirected graph.

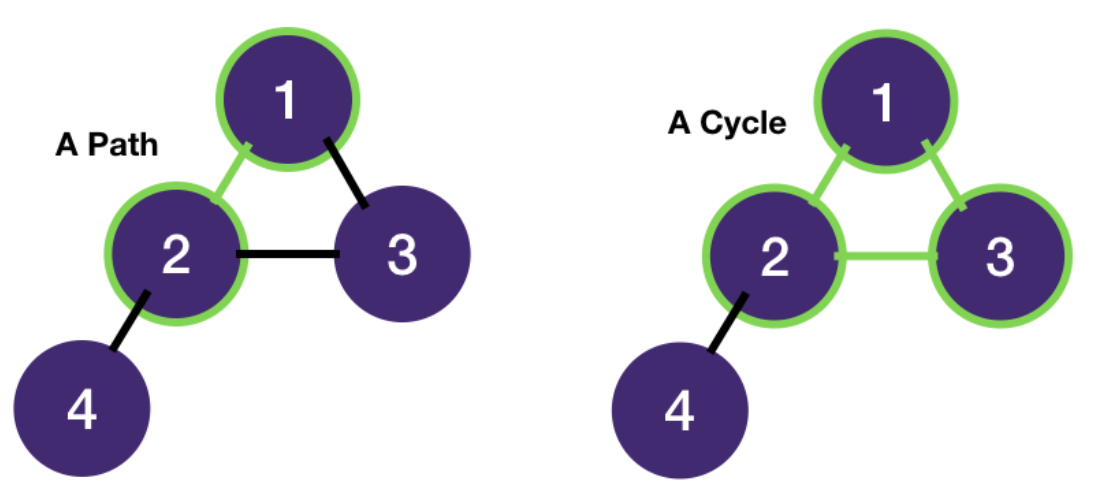

• A path is a sequence of vertices.
• A cycle is a path that starts and ends at the same vertex.

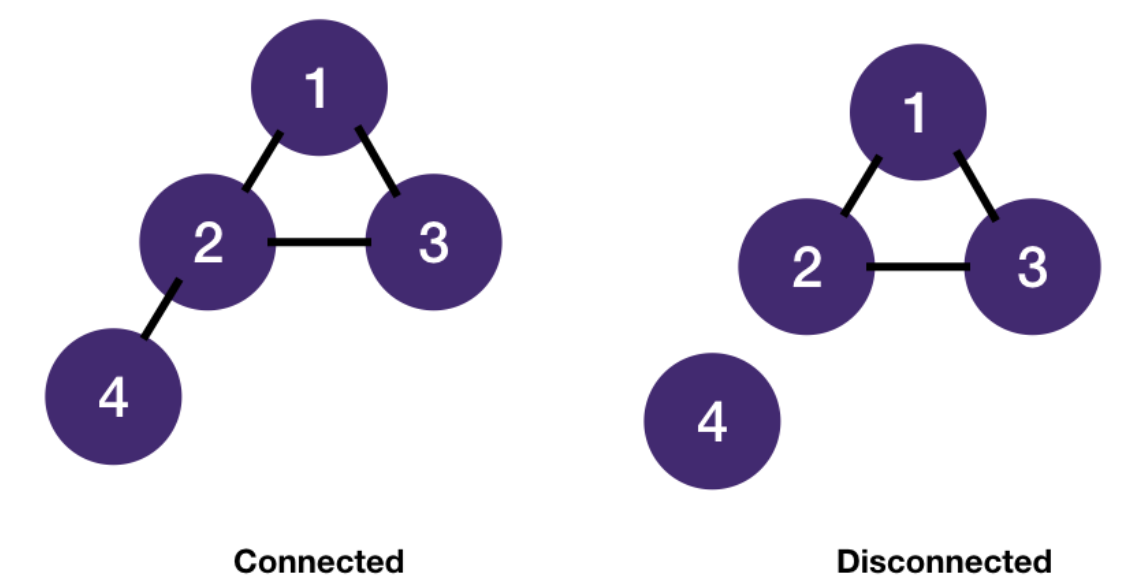

• An undirected graph is connected if every vertex is joined by a path to another vertex.
• Otherwise, it's disconnected.

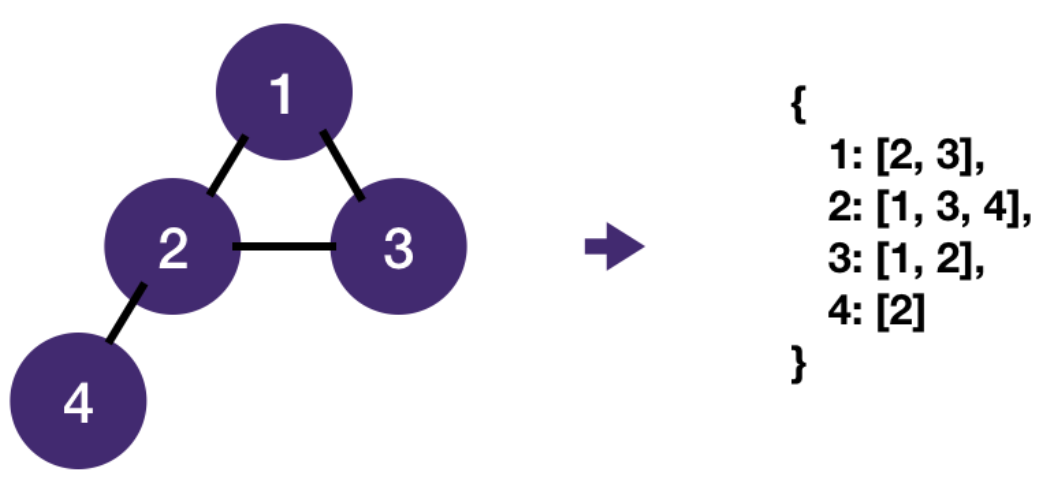

• A graph is most commonly stored as a map of adjacency lists: for each vertex, store a list of its neighbors.

• Note that even though a graph is represented as an adjacency list , we don't actually have to create it upfront.
• What we really need is a function to get a vertex's neighbors.

Breadth First Search on Graphs

Tree vs Graph Traversal

• A Tree is a connected, acyclic undirected graph.
  • Statistically, most interview graph problems are about connected and undirected graphs.
  • So for simplicity, we're gonna define a tree as a graph without cycle.
  • The search algorithms we have learned in tree modules are applicable to graphs as well.
• The difference between a tree and a graph is the possibility of having a cycle, we just have to handle this situation.
  • We use an extra variable visited to keep track of vertices we have already visited to prevent re-visiting and getting into infinite loops.
  • visited can be any data structure that can answer existence queries quickly.
    • For example, a hash set or an array where each element maps to a vertex in the graph can both do this in constant time.
• Note minor terminology change from tree to graph - we call "children" "neighbors" since there's no parent-child relationship in a graph.

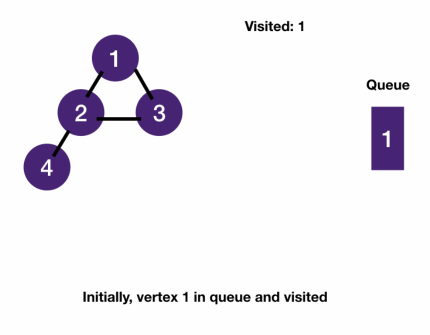

BFS on graphs

• Notice how the visited set prevents infinite loops. If we didn't have it, we would have enqueued 2's neighbors 1 and 3 into the queue again which would enqueue 2 again.

BFS on graph template

• BFS template consists of two core functions
  1. bfs: uses a queue to keep track of nodes to be visited
  2. get_neighbors: returns a node's neighbors.
     • In an adjacency list representation, this would be returning the list of neighbors for the node.
     • If the problem is about a matrix, this would be the surrounding valid cells as we will see in number of islands and knight shortest path
     • If the graph is implicit, we have to generate the neighbors as we traverse.
     • We will see this in word ladder
• BFS on tree

function bfsByQueue(root) {
  const queue = [root];
  while (queue.length > 0) {
    const node = queue.shift();
    for (const child of node.children) {
      queue.push(child);
    }
  }
}

• BFS on graph

function getNeighbors(graph, node) {
  return graph[node];
}

function bfs(root) {
  const queue = [root];
  const visisted = new Set();
  while (queue.length > 0) {
    const node = queue.shift();
    for (const neighbor of getNeighbors(node)) {
      if (visisted.has(neighbor)) continue;
      queue.push(neighbor);
      visisted.add(neighbor);
    }
  }
}

Tracking levels/Finding distance

• BFS is by-level traversal.
• Sometimes we need to track how many levels we have traversed (much like level order traversal problem in BFS on Tree module).
• Similar to binary tree level order traversal, we can get the number of nodes of a level from the queue size.

function bfsLevel(root) {
  const queue = [root];
  const visisted = new Set();
  let level = 0;
  while (queue.length > 0) {
    const n = queue.length;  // get # of nodes in the current level
    for (let i=0; i<n; i++) {
      const node = queue.shift();
      for (const neighbor of getNeighbors(node)) {
        if (visisted.has(neighbor)) continue;
        queue.push(neighbor);
        visisted.add(neighbor);
      }
    }
    // increment level after we have processed all nodes of the level
    level++;
  }
}

When to use BFS?

• Shortest path from A to B (unweight)
• Graph of unknown or even infinite size, e.g. knight shortest path
• Dijkstra Intro | Shortest Path in a Weighted Graph

Depth First Search on Graphs

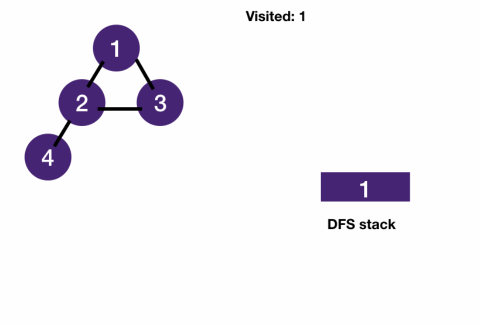

• Similar to BFS, we just have to add visited to keep track of visited nodes and use get_neighbors to get the next nodes to visit.

• DFS on tree

function dfs(root) {
  if (!root) return;
  for (const child of node.children) {
    dfs(child);
  }
}

• DFS on graph

function dfs(root, visited) {
  for (const neighbor of getNeighbors(root)) {
    if (visited.has(neighbor)) continue;
    visited.add(neighbor);
    dfs(neighbor, visited);
  }
}

Complexity

• We only visit each vertex once in both BFS and DFS with visited.
  • Since technically a graph is made of vertices and edges,
    • the time complexity of BFS/DFS on graphs is normally expressed as O(|V| + |E|)
      • where |V| stands for number of vertices and |E| stands for number of edges
      • V is set of vertices and in math |V| means the size of a set

BFS or DFS

When should you use one over the other?

• If you just have to visit each node once without memory constraints (e.g. number of islands problem),
  • then it doesn't really matter which one you use.
  • It comes down to your personal preference for recursion/stack vs queue.

BFS is better at	DFS is better at
finding the shortest distance between two vertices	uses less memory than BFS for wide graphs, since BFS has to keep all the nodes in the queue, and for wide graphs this can be quite large.
graph of unknown size, e.g. word ladder, or even infinite size, e.g. knight shortest path	finding nodes far away from the root, e.g. looking for an exit in a maze.
