Graph: Matrix As Graph

• Very often graph problems are represented as a matrices. For example:
  • Number of Islands
  • Knight Shortest Path

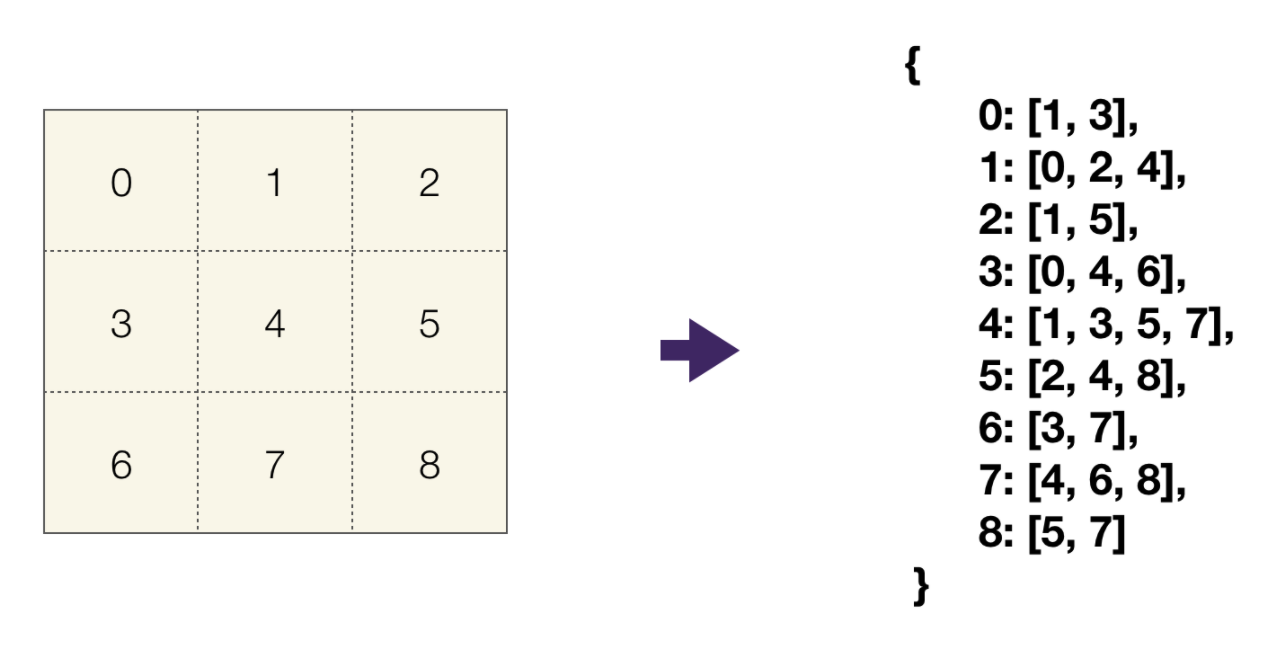

• A matrix translates to a graph (adjacency list):

• When we code the problem, we have to build the graph as we go.

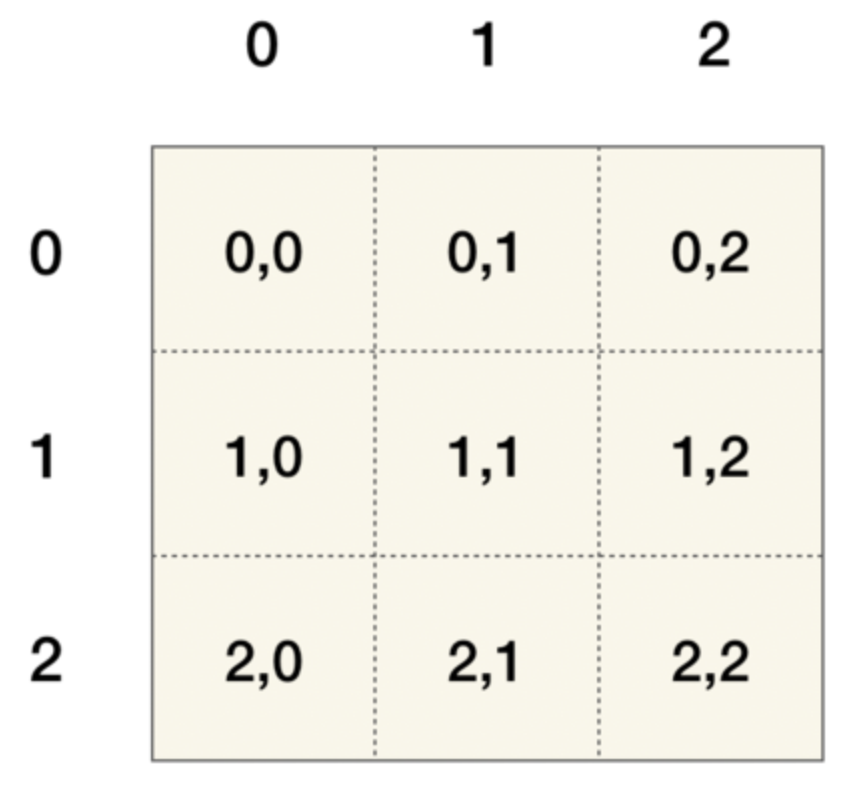

  • Nodes/vertices are represented by coordinates of matrix entries.

Getting neighboring node's coordinates

• The core of BFS/DFS is to add neighbors of the current vertex to queue/stack.

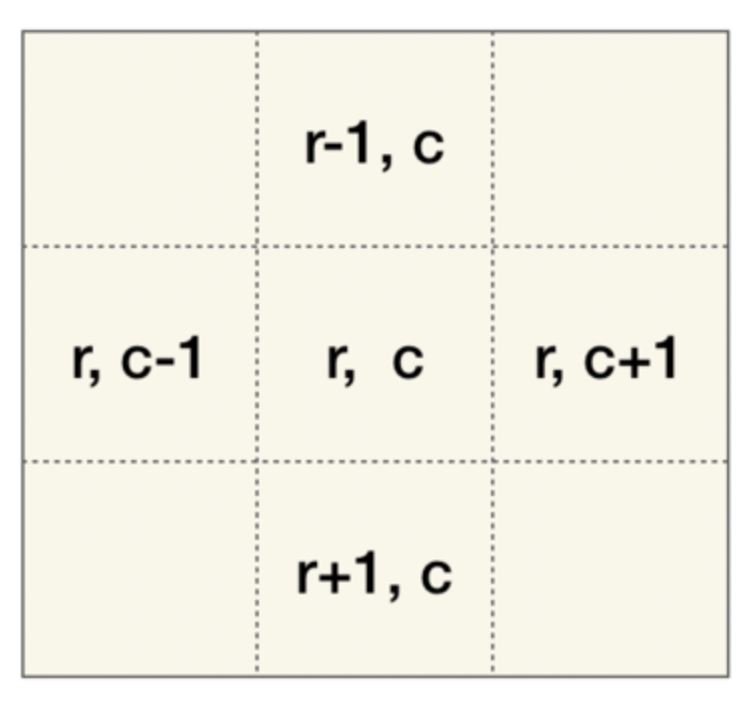

  • The get_neighbors function returns all 4 (or 8 if you are allowed to go diagonal) coordinates of neighboring nodes.

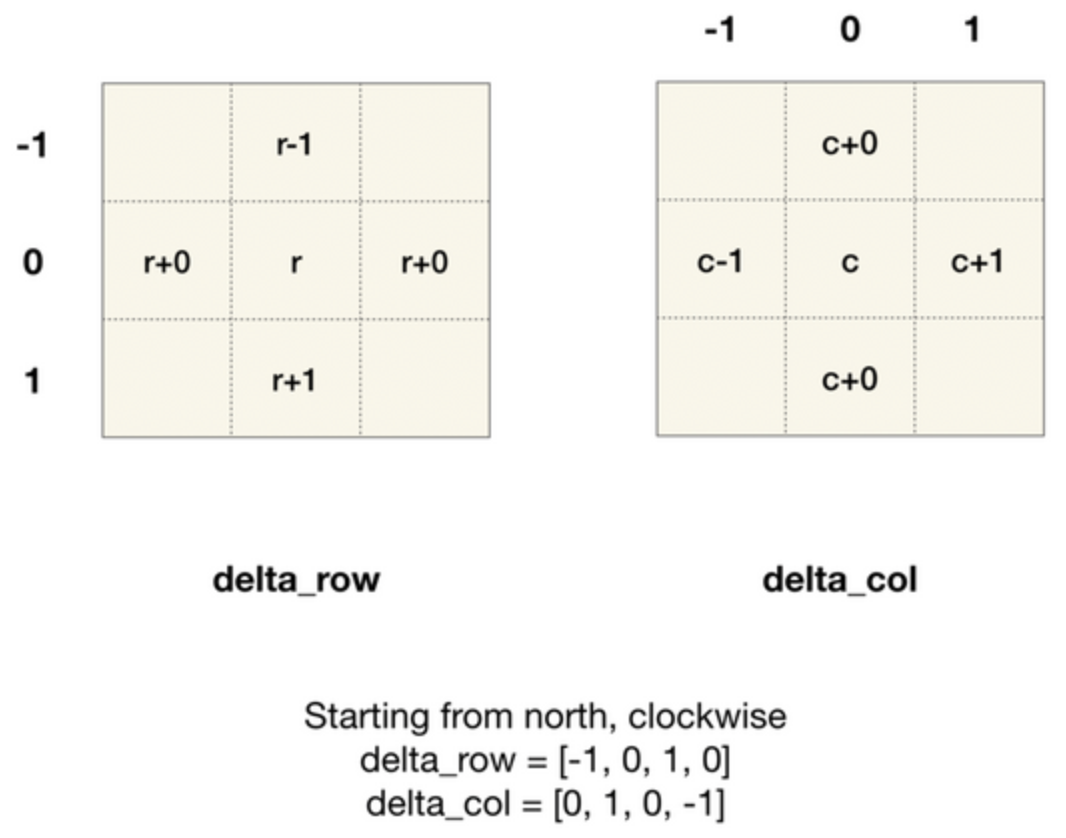

• One way to get each neighbor's coordinates is to keep each neighbor's horizontal and vertical offsets (i.e. delta) in a list
  • and adding them to the each vertex's coordinates.

const numRows = grid.length;
const numCols = grid[0].length;
function getNeighbors(coord) {
  const [row, col] = coord;
  const deltaRow = [-1, 0, 1, 0];
  const deltaCol = [0, 1, 0, -1];
  const result = [];
  for (let i=0; i<deltaRow.length; i++) {
    const neighborRow = row + deltaRow[i];
    const neighborCol = col + deltaCol[i];
    if (0 <= neighborRow && neighborRow < numRows && 0 <= neighborCol && neighborCol < numCols) {
      result.push([neighborRow, neighborCol]);
    }
  }
  return result;
}

BFS template

• Sometimes we can overwrite the value in the matrix to keep track of visited nodes without using a visited set.
  • We'll see this in Number of Islands

const numRows = grid.length;
const numCols = grid[0].length;
function getNeighbors(coord) {
  const [row, col] = coord;
  const deltaRow = [-1, 0, 1, 0];
  const deltaCol = [0, 1, 0, -1];
  const result = [];
  for (let i=0; i<deltaRow.length; i++) {
    const neighborRow = row + deltaRow[i];
    const neighborCol = col + deltaCol[i];
    if (0 <= neighborRow && neighborRow < numRows && 0 <= neighborCol && neighborCol < numCols) {
      result.push([neighborRow, neighborCol]);
    }
  }
  return result;
}

function bfs(startingNode) {
  const queue = [startingNode];
  const visited = new Set([startingNode]);
  while (queue.length > 0) {
    const node = queue.shift();
    for (const neighbor of getNeighbors(node)) {
      if (visited.has(neighbor)) continue;
      // Do stuff with the node if required
      // ...
      queue.push(neighbor);
      visited.add(neighbor);
    }
  }
}
